Design and Dimensions

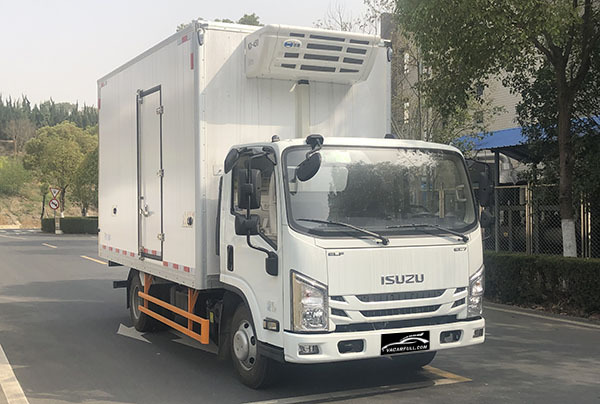

1. Flexible Exterior Design: The Jiangxi Isuzu ELF EST7 refrigerated truck features a length of 5995 mm. The width offers multiple options, ranging from 2060 to 2260 mm, and the height spans from 3000 to 3475 mm. This wide array of dimensions enables the vehicle to adapt to various transportation scenarios, whether it's navigating through narrow urban streets or accommodating large - scale cold - storage loading bays.
2. Spacious Cargo Compartment: The cargo compartment of the ELF EST7 provides remarkable flexibility. The length can be either 4020 or 4050 mm. Width options include 1900, 1960, 2000, 2050, 2080, and 2100 mm, while the height ranges from 1850 to 2300 mm. This large and adjustable space can comfortably accommodate different types of cold - chain products, from pallets of frozen food to sensitive pharmaceutical items.

Load - Bearing and Performance

1. Optimal Load - Bearing Capacity: With a gross vehicle mass of 4495 kg, the ELF EST7 has rated load capacities of 1090 kg or 1155 kg and a curb mass of 3210 kg. A load mass coefficient of 0.40 indicates an efficient balance between the vehicle's own weight and its loading capacity. The 1090 - mm front overhang and 1545 - mm rear overhang, along with a 20° approach angle and a 16° departure angle, ensure excellent maneuverability in diverse loading and driving conditions.
2. Powerful Engine Performance: The ELF EST7 is powered by the 4JJ1GJ diesel engine with a displacement of 2999 ml. This engine generates 125 kW (170 hp) of power, meeting the GB17691 - 2018 China VI emission standard. The vehicle can reach a maximum speed of 100 - 110 km/h, enabling quick response times during emergency cold - chain deliveries. With a fuel consumption of 11.5 L, it offers relatively good fuel efficiency considering its load - bearing capabilities.

Chassis and Safety Features

1. Durable Chassis Structure: The chassis, model JXW1040CDJA2 (Type II) by Jiangxi Isuzu Motor Co., Ltd., has 2 axles and a wheelbase of 3360 mm. There are 6 tires, with specifications of 7.00R16LT 8PR or 7.00R16LT 10PR. The front track width is 1680 mm, and the rear track width can be either 1570 or 1680 mm. Multiple leaf - spring configurations (7/5 + 6, 3/5 + 2, 3/3 + 2, 2/2 + 1) ensure a stable and smooth ride, even when carrying heavy refrigerated cargo.
2. Enhanced Safety with ABS: The anti - lock braking system (ABS) comes as a standard feature on the ELF EST7. ABS significantly improves the vehicle's safety during braking by preventing wheel lock - up, maintaining vehicle stability, and reducing the risk of accidents. In cold - chain transportation, where the integrity of temperature - sensitive goods is of utmost importance, this safety feature plays a crucial role.

Customization and Utility

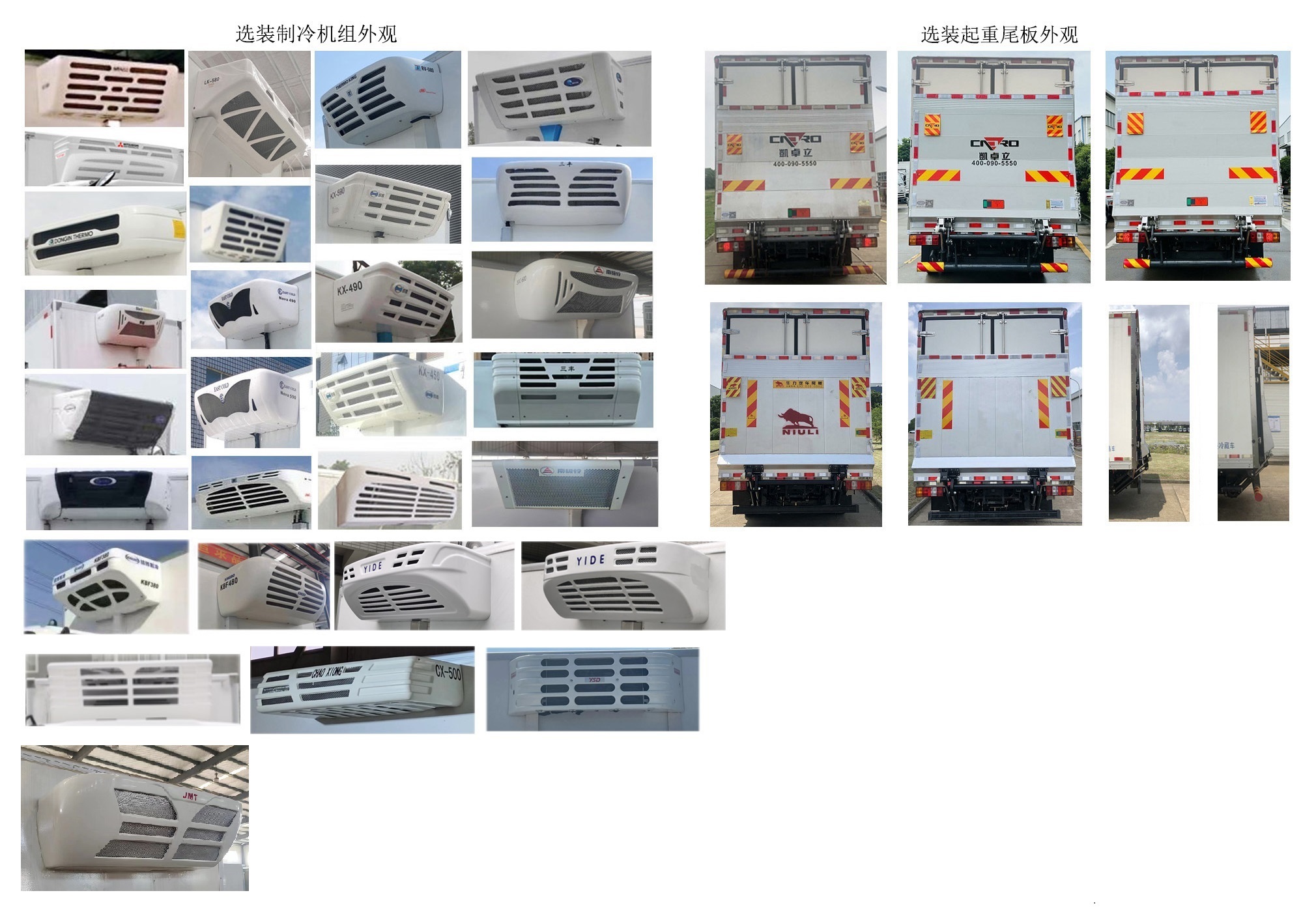

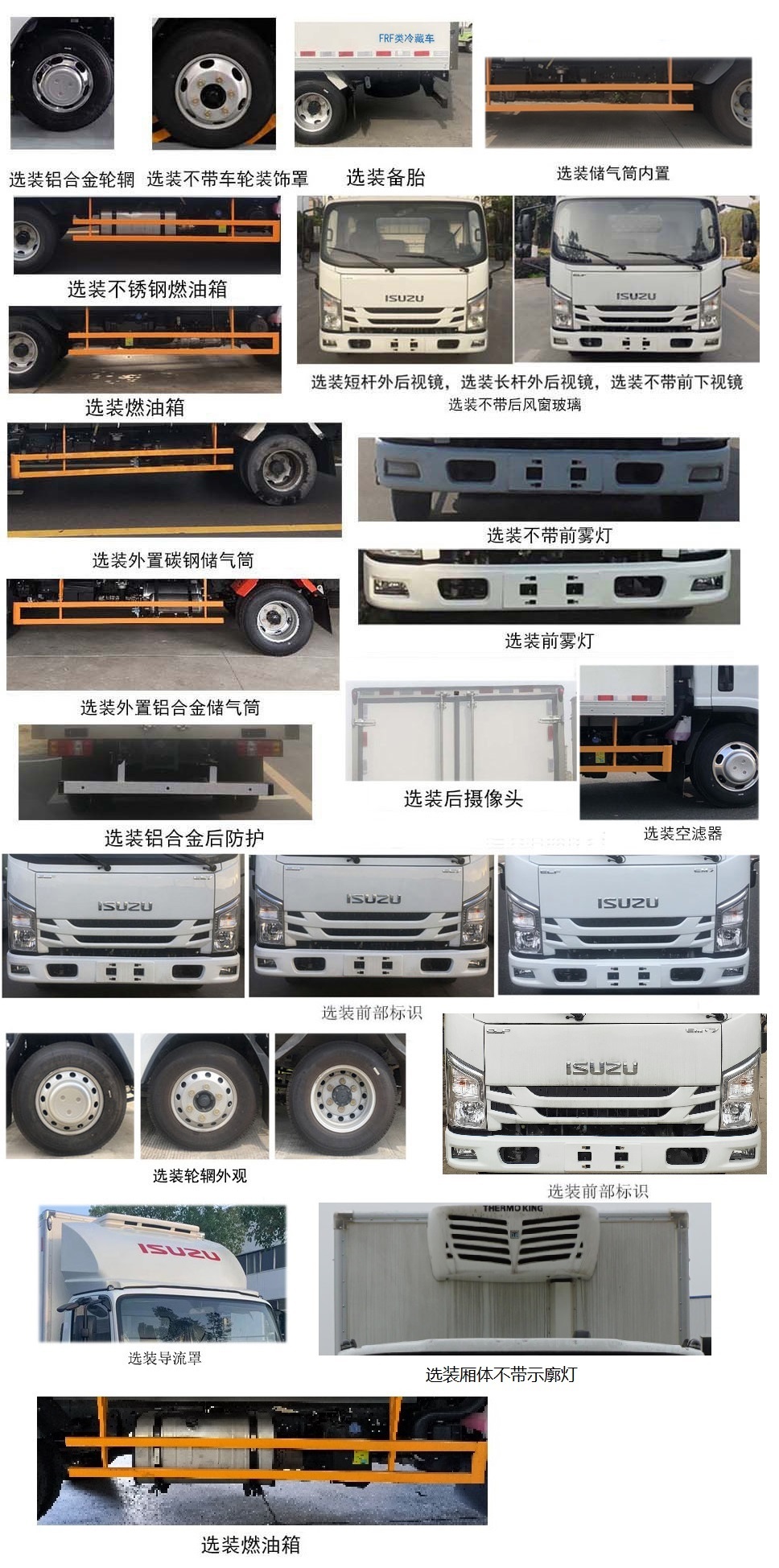

1. Diversified Modifications: This truck model allows for diversified modifications according to customers' requirements. Whether it's optimizing the refrigerated compartment's interior for better temperature control, adding specialized loading and unloading equipment, or customizing the exterior for branding purposes, the ELF EST7 can be tailored to meet specific business needs.
2. Ideal for Cold - Chain Logistics: As a refrigerated truck, the Jiangxi Isuzu ELF EST7 is specifically designed to maintain the required low - temperature environment for perishable goods. Its large and flexible cargo space, reliable performance, and safety features make it an ideal choice for cold - chain logistics companies. It can transport a wide range of cold - chain products, ensuring their quality and safety during transit.

Customer Value and Experience

1. Cost - Effective Solution: The combination of a fuel - efficient engine, a durable chassis, and a reasonable load - bearing capacity makes the ELF EST7 a cost - effective option for cold - chain transportation. The ability to customize the vehicle according to specific business requirements further enhances its value, as it can be optimized to reduce operating costs while still meeting the demands of the cold - chain industry.
2. Reliable and Practical: The ELF EST7 offers a reliable and practical solution for cold - chain transportation. Its powerful engine, stable chassis, and safety features ensure that goods are transported smoothly and securely. The customizable cargo compartment and the option for various modifications make it adaptable to different cold - chain transportation challenges, providing customers with a vehicle that can meet their unique needs.
