Design and Dimensions

1. Flexible Exterior Design: The overall dimensions of the Jiangxi Isuzu ELF ES5 refrigerated truck exhibit great flexibility. With a length of 5995 mm, the width can be selected from a variety of values: 2060, 2120, 2160, 2210, 2230, 2240, 2260 mm. The height ranges from 3005 to 3485 mm, providing multiple options to meet different transportation requirements. This wide range of dimensions enables the vehicle to navigate through various terrains and loading spaces, whether it's narrow urban alleys or large - scale cold storage facilities.
2. Spacious Cargo Compartment: The cargo compartment of the ELF ES5 is equally adaptable. The length can be either 4020 or 4050 mm, the width can be chosen from 1900, 1960, 2000, 2050, 2080, 2100 mm, and the height ranges from 1850 to 2300 mm. Such a large and adjustable cargo space can comfortably accommodate different types of cold - chain products, from large - scale frozen food pallets to smaller pharmaceutical items.

Load - Bearing and Performance

1. Optimal Load - Bearing Capacity: The ELF ES5 has a gross vehicle mass of 4495 kg, with rated load capacities of 1090 kg or 1155 kg and a curb mass of 3210 kg. A load mass coefficient of 0.4 indicates an efficient balance between the vehicle's own weight and its loading capacity. The 1090 - mm front overhang and 1545 - mm rear overhang, along with a 20° approach angle and a 16° departure angle, ensure the vehicle's maneuverability in different loading and driving conditions.
2. Powerful Engine Performance: Powered by the 4JJ1GJ diesel engine with a displacement of 2999 ml, the ELF ES5 delivers a power output of 125 kW (170 hp). Meeting the GB17691 - 2018 China VI emission standard, this engine not only provides sufficient power for driving but also adheres to strict environmental regulations. The vehicle has a maximum speed of 100 - 110 km/h, enabling efficient transportation. The fuel consumption of 11.5 L is relatively economical considering its load - bearing capabilities.

Chassis and Safety Features

1. Durable Chassis Structure: The chassis, model JXW1040CDJ2 (Type II) by Jiangxi Isuzu Motor Co., Ltd., has 2 axles and a wheelbase of 3360 mm. There are 6 tires, with specifications of 7.00R16LT 8PR or 7.00R16LT 10PR. The front track width can be either 1565 or 1585 mm, and the rear track width can be 1508 or 1578 mm. The multiple leaf - spring options (7/5 + 6, 3/5 + 2, 3/3 + 2, 2/2 + 1) ensure a stable and smooth ride, even when carrying heavy refrigerated cargo.
2. Enhanced Safety with ABS: The anti - lock braking system (ABS) is a standard feature on the ELF ES5. ABS significantly improves the vehicle's safety during braking by preventing wheel lock - up, maintaining vehicle stability, and reducing the risk of accidents. In cold - chain transportation, where the integrity of temperature - sensitive goods is of utmost importance, this safety feature plays a crucial role.

Customization and Utility

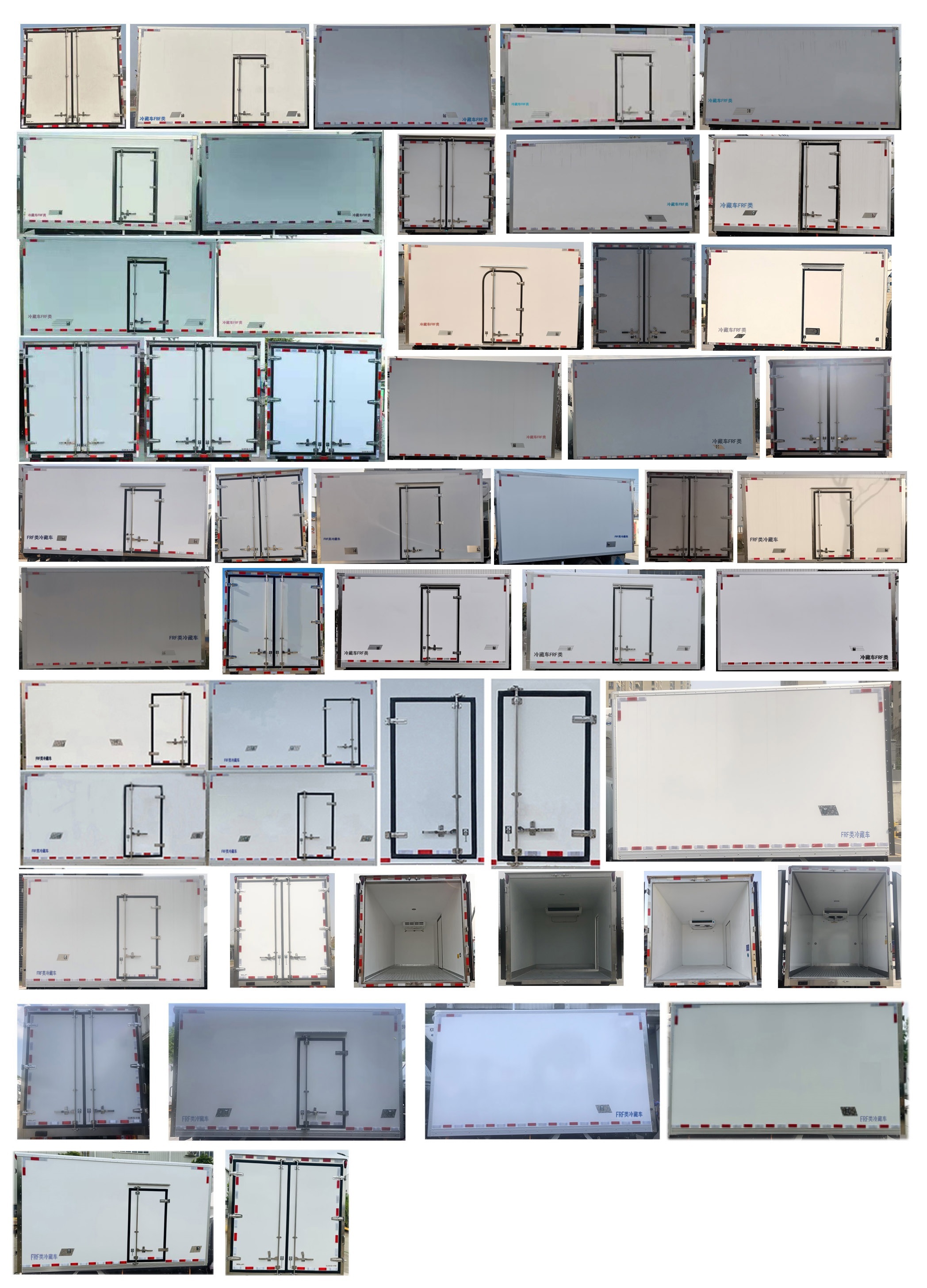

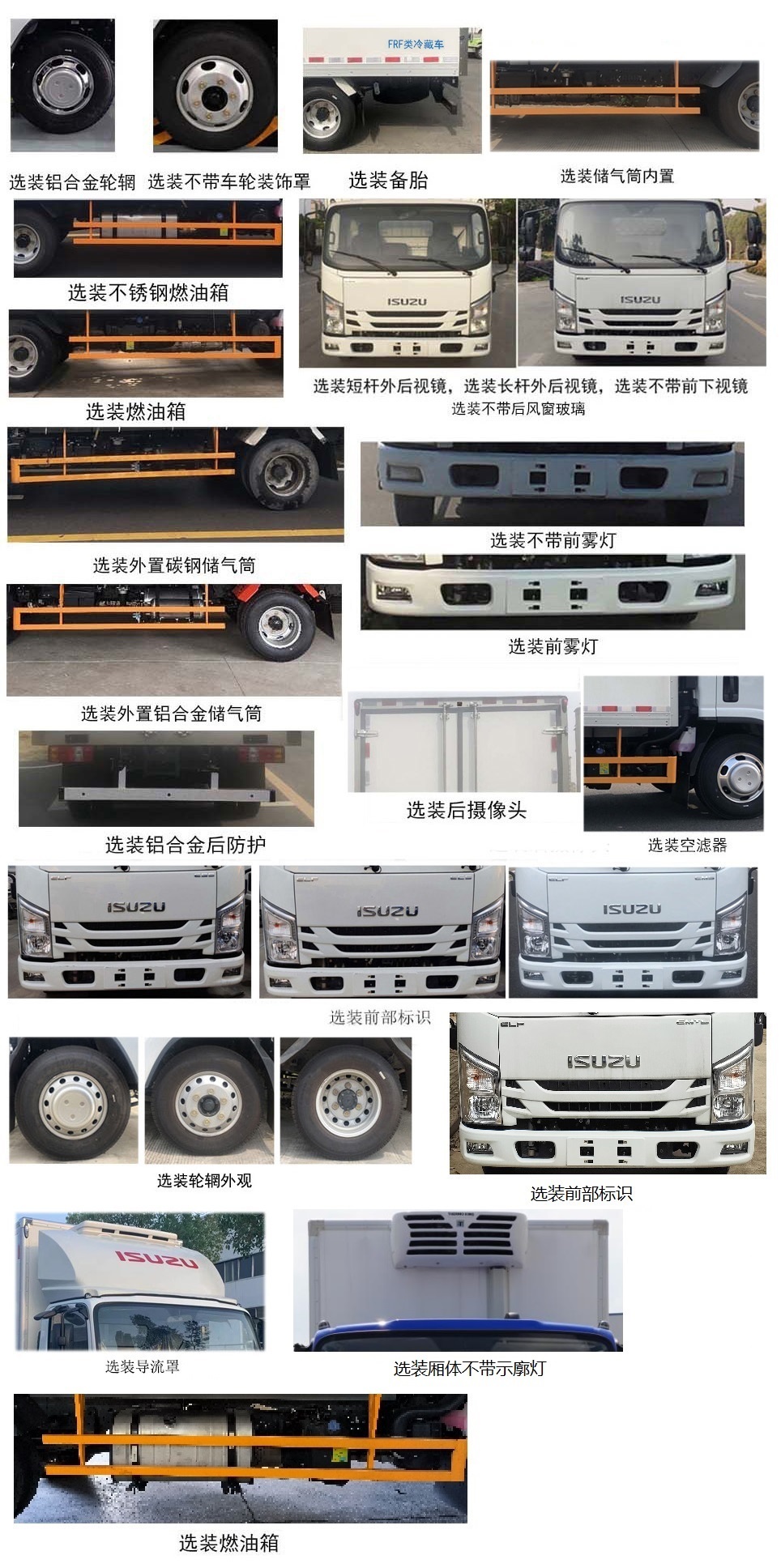

1. Diversified Modifications: This truck model allows for diversified modifications according to customers' requirements. Whether it's adjusting the interior of the refrigerated compartment to better suit the temperature - control needs of different products, adding specialized loading and unloading equipment, or customizing the exterior for branding purposes, the ELF ES5 can be tailored to meet specific business needs.
2. Ideal for Cold - Chain Logistics: As a refrigerated truck, the Jiangxi Isuzu ELF ES5 is designed to maintain the required low - temperature environment for perishable goods. Its large and flexible cargo space, reliable performance, and safety features make it an ideal choice for cold - chain logistics companies. It can transport a wide range of cold - chain products, ensuring their quality and safety during transit.

Customer Value and Experience

1. Cost - Effective Solution: The combination of a fuel - efficient engine, a durable chassis, and a reasonable load - bearing capacity makes the ELF ES5 a cost - effective option for cold - chain transportation. The ability to customize the vehicle according to specific business requirements further enhances its value, as it can be optimized to reduce operating costs while still meeting the demands of the cold - chain industry.
2. Reliable and Practical: The ELF ES5 offers a reliable and practical solution for cold - chain transportation. Its powerful engine, stable chassis, and safety features ensure that goods are transported smoothly and securely. The customizable cargo compartment and the option for various modifications make it adaptable to different cold - chain transportation challenges, providing customers with a vehicle that can meet their unique needs.
